Inverter · Product details

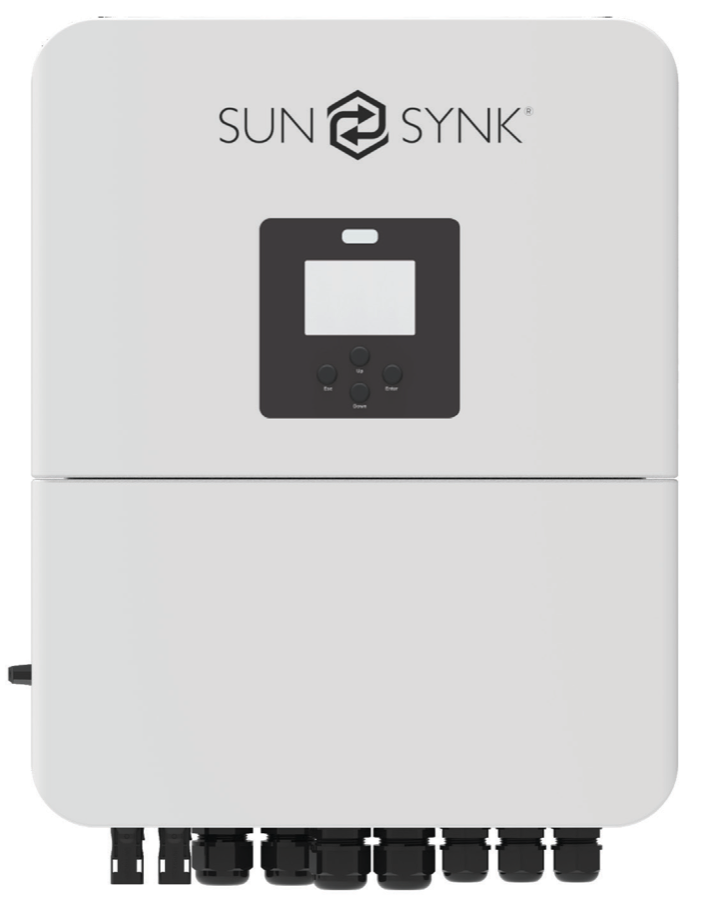

Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2
Inverter · Made in GB
Check it in a full system design
Technical specifications
- Phase
1P
Unverified catalogue value
- Rated AC output power
5 kW
Unverified catalogue value
- MPP trackers
2
Unverified catalogue value
- Max PV short-circuit current
27 A
Unverified catalogue value
- Max PV input voltage
500 V
Unverified catalogue value
More specifications 6–6
- Max PV array power
8000 Wp
Unverified catalogue value
Dimensions & weight
- Width
376 mm
Unverified catalogue value
- Height
470 mm
Unverified catalogue value
- Depth
242 mm
Unverified catalogue value
- Weight
19 kg
Unverified catalogue value
- Country Of Origin
GB
Unverified catalogue value
Manufacturer information
Public source documents and brand-level warranty facts recorded in the catalogue.
Manufacturer documents
Datasheet reference
SYNK-5K-SG04LP1-SM2
A legacy catalogue reference exists, but no working public link is recorded.
Brand warranty information
No manufacturer warranty information is recorded for Sunsynk yet.
Compatibility
This inverter's supported batteries, meters and backup gateways, from the manufacturer's published pairing data:
What works with the Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2 →
Frequently asked
- What are the dimensions of the Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2?
- The Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2 measures 376 mm wide × 470 mm high × 242 mm deep. This figure is read from the manufacturer's datasheet.
- How much does the Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2 weigh?
- The Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2 weighs 19 kg (read from the manufacturer's datasheet).
- Where is the Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2 made?
- Our catalogue records the country of origin for the Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2 as GB (ISO 3166-1 alpha-2).
- Which batteries work with the Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2?
- The manufacturer's published pairing data lists 1 option for the Sunsynk SYNK-SG04LP1-SM2 SYNK-5K-SG04LP1-SM2: N/A (battery TBC). Each pairing has its own page with the evidence behind it.
Alternatives
Other inverters of comparable size. We rank by the closest stored figure, not by preference — no product here is recommended over another.
Last updated 2026-09-20. Design aid only — verify against the manufacturer's documentation.
