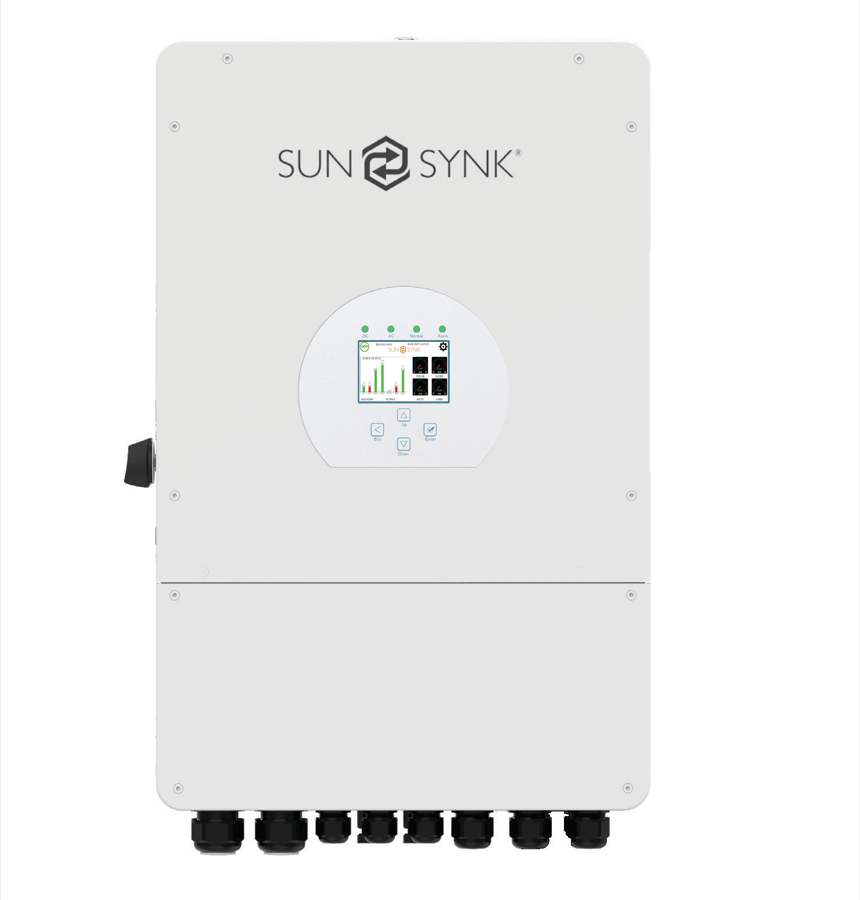

Inverter · Product details
SUNSYNK-SG02LP1 SUNSYNK-8K-SG02LP1
Inverter · Made in GB
Check it in a full system design
Technical specifications
- Phase
1P
Unverified catalogue value
- Rated AC output power
8 kW
Unverified catalogue value
- MPP trackers
2
Unverified catalogue value
- Max PV short-circuit current
44 A
Unverified catalogue value
- Max PV input voltage
500 V
Unverified catalogue value
More specifications 6–6
- Max PV array power
10400 Wp
Unverified catalogue value
Dimensions & weight
- Width
430 mm
Unverified catalogue value
- Height
520 mm
Unverified catalogue value
- Depth
180 mm
Unverified catalogue value
- Weight
32 kg
Unverified catalogue value
- Country Of Origin
GB
Unverified catalogue value
Manufacturer information
Public source documents and brand-level warranty facts recorded in the catalogue.
Manufacturer documents
Datasheet reference
SUNSYNK-8K-SG02LP1
A legacy catalogue reference exists, but no working public link is recorded.
Brand warranty information
No manufacturer warranty information is recorded for Sunsynk yet.
Compatibility
This inverter's supported batteries, meters and backup gateways, from the manufacturer's published pairing data:
Related products
Other variants in the SUNSYNK-SG02LP1 family:
Frequently asked
- What are the dimensions of the SUNSYNK-SG02LP1 SUNSYNK-8K-SG02LP1?
- The SUNSYNK-SG02LP1 SUNSYNK-8K-SG02LP1 measures 430 mm wide × 520 mm high × 180 mm deep. This figure is estimated from comparable equipment — not a measurement.
- How much does the SUNSYNK-SG02LP1 SUNSYNK-8K-SG02LP1 weigh?
- The SUNSYNK-SG02LP1 SUNSYNK-8K-SG02LP1 weighs 32 kg (estimated from comparable equipment — not a measurement).
- Where is the SUNSYNK-SG02LP1 SUNSYNK-8K-SG02LP1 made?
- Our catalogue records the country of origin for the SUNSYNK-SG02LP1 SUNSYNK-8K-SG02LP1 as GB (ISO 3166-1 alpha-2).
- Which batteries work with the SUNSYNK-SG02LP1 SUNSYNK-8K-SG02LP1?
- The manufacturer's published pairing data lists 1 option for the SUNSYNK-SG02LP1 SUNSYNK-8K-SG02LP1: N/A (battery TBC). Each pairing has its own page with the evidence behind it.
Alternatives
Other inverters of comparable size. We rank by the closest stored figure, not by preference — no product here is recommended over another.
Last updated 2026-09-20. Design aid only — verify against the manufacturer's documentation.
