Inverter · Product details

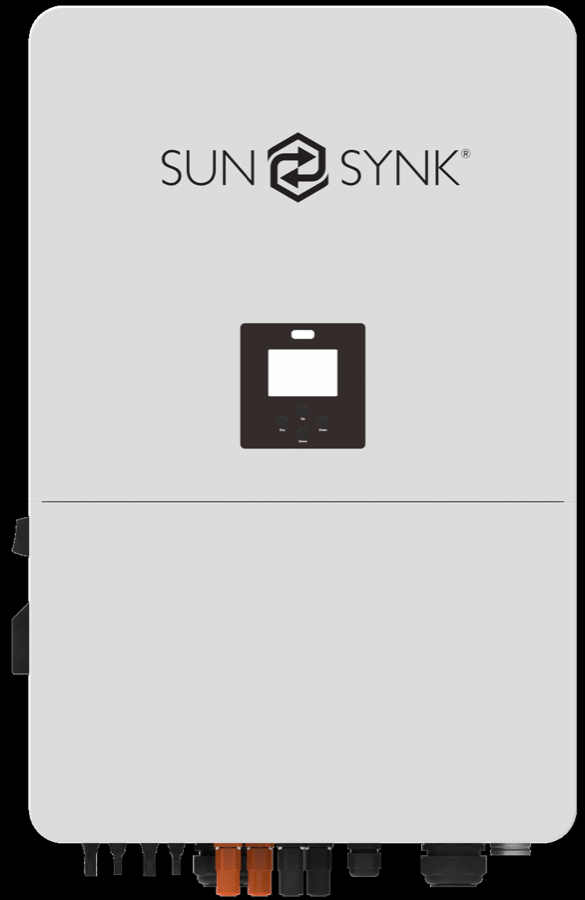

SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6
Inverter · Made in GB
Check it in a full system design
Technical specifications
- Phase
3P
Unverified catalogue value
- Rated AC output power
80 kW
Unverified catalogue value
- MPP trackers
6
Unverified catalogue value
- Max PV short-circuit current
54 A
Unverified catalogue value
- Max PV input voltage
1000 V
Unverified catalogue value
More specifications 6–6
- Max PV array power
128000 Wp
Unverified catalogue value
Dimensions & weight
- Width
606 mm
Unverified catalogue value
- Height
927 mm
Unverified catalogue value
- Depth
314 mm
Unverified catalogue value
- Weight
105 kg
Unverified catalogue value
- Country Of Origin
GB
Unverified catalogue value
Manufacturer information
Public source documents and brand-level warranty facts recorded in the catalogue.
Manufacturer documents
Datasheet reference
SUNSYNK-80K-SG02HP3-EU-EM6
A legacy catalogue reference exists, but no working public link is recorded.
Brand warranty information
No manufacturer warranty information is recorded for Sunsynk yet.
Compatibility
This inverter's supported batteries, meters and backup gateways, from the manufacturer's published pairing data:
What works with the SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6 →
Frequently asked
- What are the dimensions of the SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6?
- The SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6 measures 606 mm wide × 927 mm high × 314 mm deep. This figure is read from the manufacturer's datasheet.
- How much does the SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6 weigh?
- The SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6 weighs 105 kg (read from the manufacturer's datasheet).
- Where is the SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6 made?
- Our catalogue records the country of origin for the SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6 as GB (ISO 3166-1 alpha-2).
- Which batteries work with the SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6?
- The manufacturer's published pairing data lists 1 option for the SUNSYNK-SG02HP3-EU-EM6 SUNSYNK-80K-SG02HP3-EU-EM6: N/A (HV battery TBC). Each pairing has its own page with the evidence behind it.
