Inverter · Product details

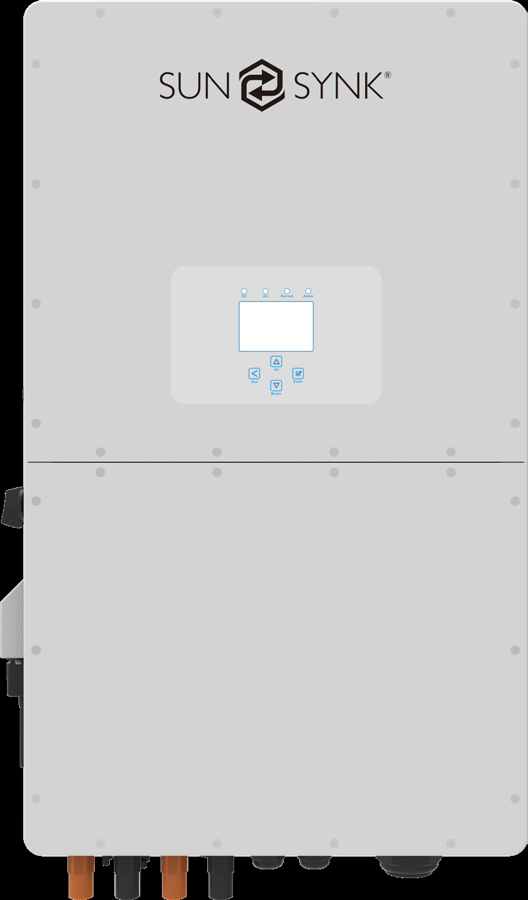

SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4
Inverter · Made in GB
Check it in a full system design
Technical specifications
- Phase
3P
Unverified catalogue value
- Rated AC output power
50 kW
Unverified catalogue value
- MPP trackers
4
Unverified catalogue value
- Max PV short-circuit current
55 A
Unverified catalogue value
- Max PV input voltage
1000 V
Unverified catalogue value
More specifications 6–6
- Max PV array power
65000 Wp
Unverified catalogue value
Dimensions & weight
- Width
527 mm
Unverified catalogue value
- Height
894 mm
Unverified catalogue value
- Depth
294 mm
Unverified catalogue value
- Weight
80 kg
Unverified catalogue value
- Country Of Origin
GB
Unverified catalogue value
Manufacturer information
Public source documents and brand-level warranty facts recorded in the catalogue.
Manufacturer documents
Datasheet reference
SUNSYNK-50K-SG01HP3-EU-BM4
A legacy catalogue reference exists, but no working public link is recorded.
Brand warranty information
No manufacturer warranty information is recorded for Sunsynk yet.
Compatibility
This inverter's supported batteries, meters and backup gateways, from the manufacturer's published pairing data:
What works with the SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4 →
Frequently asked
- What are the dimensions of the SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4?
- The SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4 measures 527 mm wide × 894 mm high × 294 mm deep. This figure is read from the manufacturer's datasheet.
- How much does the SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4 weigh?
- The SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4 weighs 80 kg (read from the manufacturer's datasheet).
- Where is the SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4 made?
- Our catalogue records the country of origin for the SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4 as GB (ISO 3166-1 alpha-2).
- Which batteries work with the SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4?
- The manufacturer's published pairing data lists 1 option for the SUNSYNK-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4: N/A (HV battery TBC). Each pairing has its own page with the evidence behind it.
Alternatives
Other inverters of comparable size. We rank by the closest stored figure, not by preference — no product here is recommended over another.
Last updated 2026-09-20. Design aid only — verify against the manufacturer's documentation.
