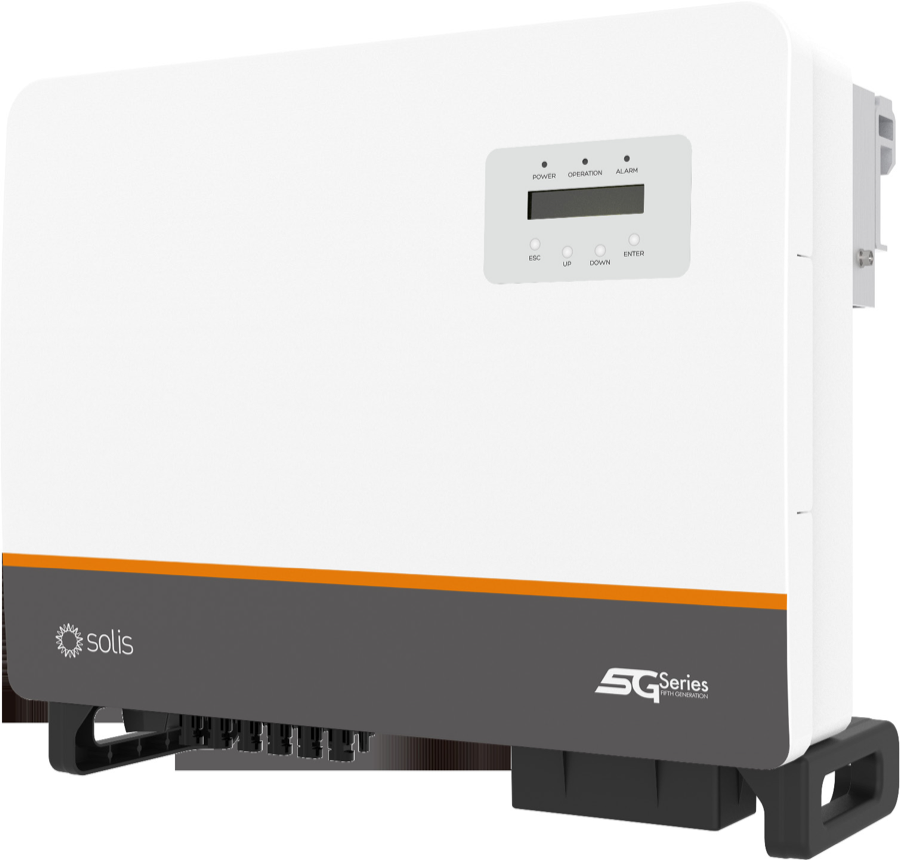

Solis S5-GC25K

Inverter · Made in CN

Check it in a full system design
Solis logo
Choose a model to preview

Use Tab to enter, then any arrow key to move through the range.

Technical specifications

Phase

3P

Unverified catalogue value

Rated AC output power

25 kW

Unverified catalogue value

MPP trackers

3

Unverified catalogue value

Max PV short-circuit current

32 A

Unverified catalogue value

Max PV input voltage

1100 V

Unverified catalogue value

More specifications 6–6
Max PV array power

37500 Wp

Unverified catalogue value

Dimensions & weight

Width

629 mm

Unverified catalogue value

Height

647 mm

Unverified catalogue value

Depth

252 mm

Unverified catalogue value

Weight

45 kg

Unverified catalogue value

Country Of Origin

CN

Unverified catalogue value

Manufacturer information

Public source documents and brand-level warranty facts recorded in the catalogue.

Manufacturer documents

  • Datasheet reference

    S5-GC25K

    A legacy catalogue reference exists, but no working public link is recorded.

Brand warranty information

No manufacturer warranty information is recorded for Solis yet.

Compatibility

This inverter's supported batteries, meters and backup gateways, from the manufacturer's published pairing data:

What works with the Solis S5-GC25K →

Related products

Other variants in the S5-GC family:

Frequently asked

What are the dimensions of the Solis S5-GC25K?
The Solis S5-GC25K measures 629 mm wide × 647 mm high × 252 mm deep. This figure is read from the manufacturer's datasheet.
How much does the Solis S5-GC25K weigh?
The Solis S5-GC25K weighs 45 kg (read from the manufacturer's datasheet).
Where is the Solis S5-GC25K made?
Our catalogue records the country of origin for the Solis S5-GC25K as CN (ISO 3166-1 alpha-2).
Which batteries work with the Solis S5-GC25K?
The manufacturer's published pairing data lists 4 options for the Solis S5-GC25K: N/A (no battery), BX51100 (5.12 kWh), T10 (9.6 kWh), PowerRack HV (20.48 kWh). Each pairing has its own page with the evidence behind it.

Alternatives

Other inverters of comparable size. We rank by the closest stored figure, not by preference — no product here is recommended over another.

Last updated 2026-09-20. Design aid only — verify against the manufacturer's documentation.
